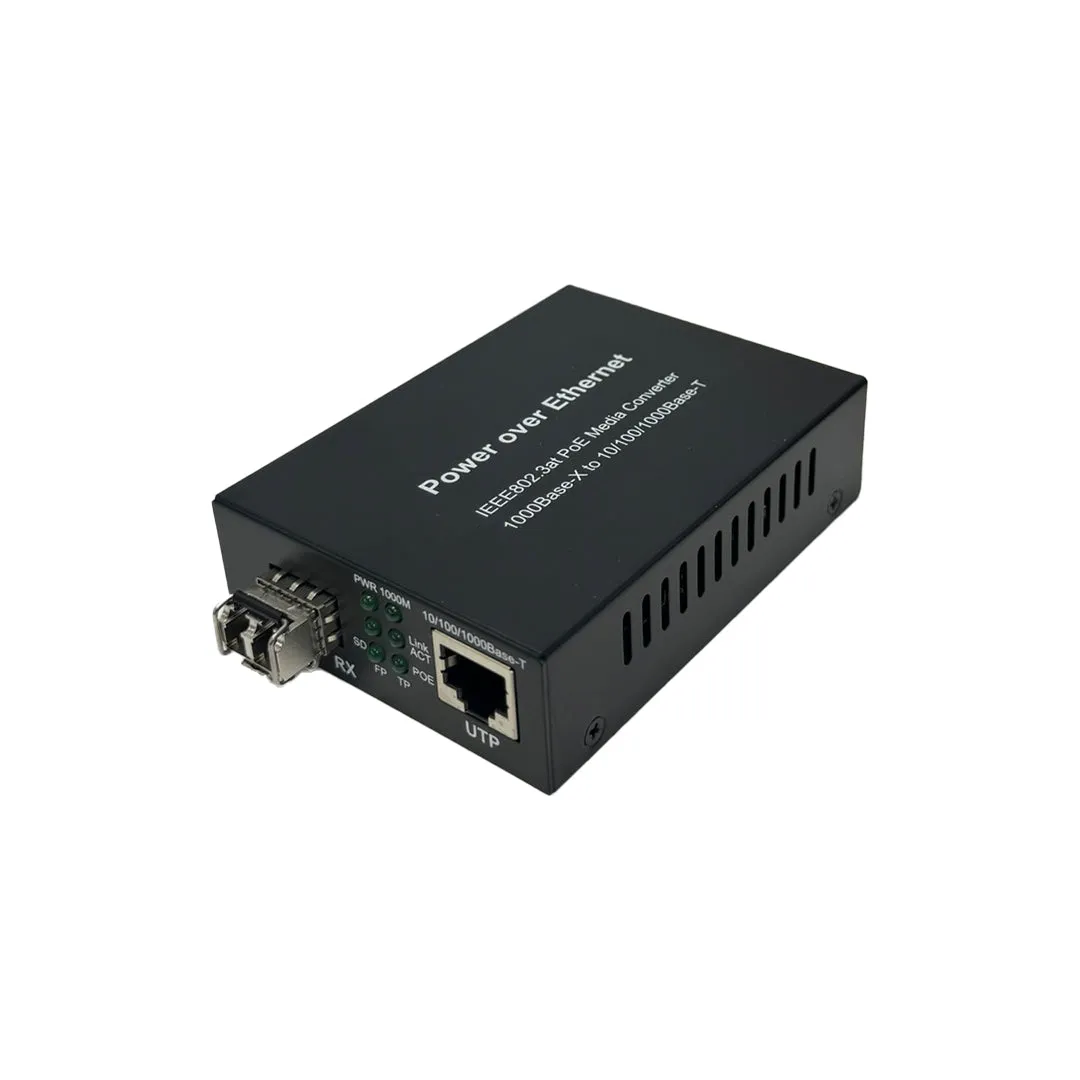

This multimode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 500m over a multimode LC fiber optic cable with PoE . The converter can be used as a standalone unit or in pairs.
Features
- 1 ×10/100/1000BaseT(X), 1× 1000BaseFX
- Support IEEE802.3AF/AT standard
- One-key electric port 10M mandatory speed limit
- Support 1000Base-FX optical fiber transmission standard
- 10/100/1000Mbps, full duplex/half duplex auto negotiation
- Support one key to turn on/off LFP
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Dimensions | 94mm x 70mm x 26mm (L x W x H) | |
| Housing | Metal | |
| Operating Temperature | -20℃ ~ 60℃ | |
| Storage Temperature | -20℃ ~ 70℃ | |
| Relative Humidity | 5% to 90% (non-condensation) | |
| Standards |
IEEE802.3 10Base-T |
|
| Power | ||
| Power Supply | DC47 ~ 57V | |
| PoE Power Output | DC 52V, Max. 30W | |
| Power Pin Assignment | 1/2 3/6 |
|
| Connectors | ||
| Fiber Connector | LC | |
| Ethernet Connector | RJ45 UTP | |
| Performance | ||
| Referenced Transmission Distance |
500m |
|
| Data Forward Rate | 10Mbps, 100Mbps, 1000Mbps | |
| Working Mode | Full duplex/ Half duplex | |
| Wavelength | Multimode: 850nm | |
| LED |
PWR (power LED) |
|
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 1.61 lbs [0.73kg] | |
| Warranty Information | ||
| Warranty | 3 Year | |
