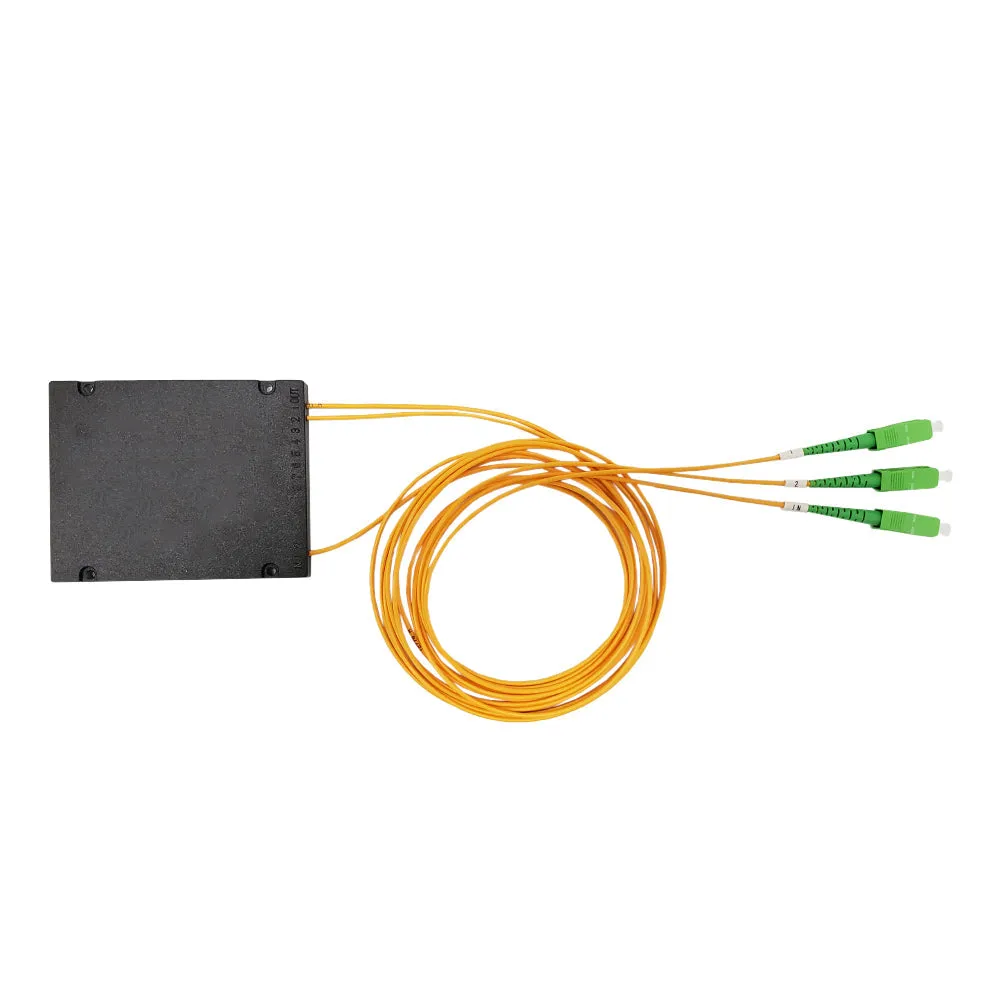

This PLC splitter is used to divide a light beam into multiple light beams for distribution to multiple terminals.
Features:
- Low insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide operating wavelength from 1260nm to 1650nm
- High reliability and stability
| Physical Characteristics | |
|---|---|
| Length | 1.5m |
| Operating Temperature | -20℃ ~ 80℃ |
| Storage Temperature | -40℃ ~ 80℃ |
| Operating Wavelength | 1260 ~ 1650nm |
| Fiber Types | Singlemode G.657A2 2mm ABS-Module |
| Insertion Loss (P/S Grade) | 3.8/4.0dB (1x2) 7.2/7.4dB (1x4) 10.3/10.7dB (1x8) 13.5/13.7dB (1x16) 16.5/16.9dB (1x32) 20.5/21.0dB (1x64) |
| Return Loss | ≥50dB |
| Directivity | ≥55dB |
| Wavelength Dependent Loss | ≥0.5dB (1x2, 1x4, 1x8, 1x16) ≥1.0dB (1x32, 1x64) |
| Maximum Power Handling (mW) | 500 |
| Connectors | |
| Connector A | SC-APC Male |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weights | FO-PLCA-1X2-SCA2 - 0.20lbs FO-PLCA-1X4-SCA2 - 0.28lbs FO-PLCA-1X8-SCA2 - 0.45lbs FO-PLCA-1X16-SCA2 - 0.52lbs FO-PLCA-1X32-SCA2 - 0.90lbs FO-PLCA-1X64-SCA2 - 1.7lbs |
